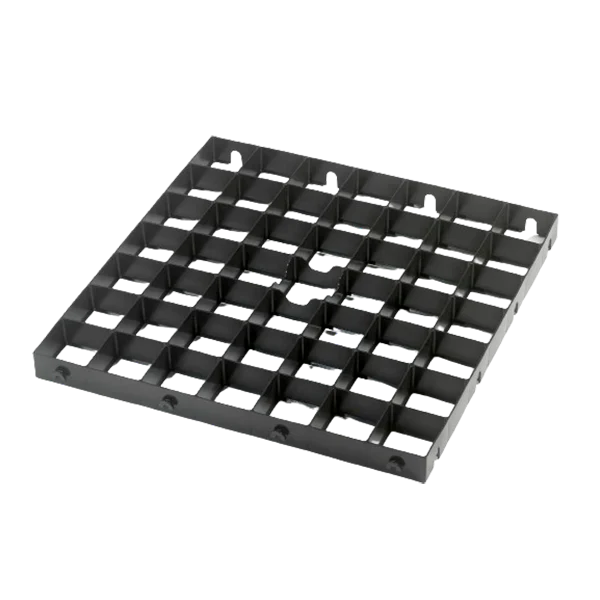

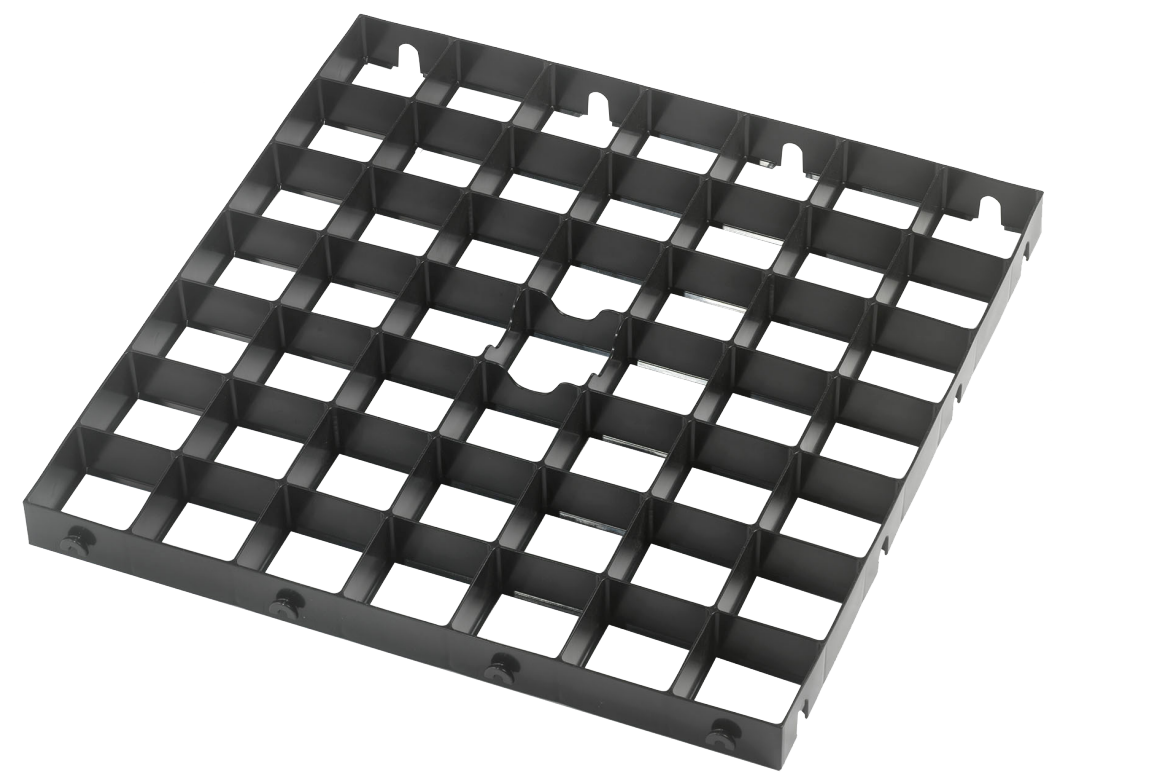

PolyGrid Paving Grid

PolyGrids [Paving Grids] are designed to provide ground reinforcement for pedestrian and light-duty use.
All quality systems and inspection procedures comply with BS EN ISO 9001: 2015.

• Quick and easy to install reducing on site costs
• Lightweight
• Proven connection system
• Surface reinforcement with natural drainage
• Minimal maintenance
• Non-slip and crack proof
• Weatherproof and environmentally friendly
• Frost and UV resistant
• Cut to size
• Dimensionally stable
• Prevents gravel migration
• Sustainable
• Non expanding
• Low transport and handling costs
• 100% recyclable

PRODUCT CODE - PG481
Recommended Vehicle Use | Passenger Cars
Load Bearing Capacity [Tonnes/m2] filled | 300
Load Bearing Capacity [Tonnes/m2] unfilled | 100
Nominal Installed Size | 481mm x 481mm x 40mm
Nominal Cell Size | 66mm x 66mm
Grids/m2 | 4.32m2
Infill Volume/m2 | 0.034m3
Weight | 0.7 [2.98kg/m2]
Infiltration [mm/hr] | >5000
Colour | Black
Material | Recycled HDPE/PP
Chemical Resistance | Excellent
UV Resistance | High
End Life | Recyclable
Connection Type | Side lugs and slots

4.32 Grids per square metre

• Construction sites
• Green car parking areas
• Private lanes and access roads
• Pathways and drives
• Golf courses
• Landscapes
• Equestrian and livestock facilities
• Green roof and rooftop gardens
• River and road embankments
• Private airfields

Note 1: The vertical loading strength of all grids will easily handle the maximum wheel load of any road vehicle in the UK. The turning forces and dry steering [turning the wheel while stationary] is the main cause of damage for these grids. Therefore, it is important to establish vehicle class use before specifying.
Note 2: Values are given for unfilled grids, tested on a rigid base: dependent on the type
of infill and ground conditions the installed grids load-bearing capacity can reach up to
circa 900 Tonnes/m2.
Note 3: Nominal cell size taken from finished surface.
Note 4: Recycling facilities vary across the country,contact specialist recyclers or local authority for more information on how to recycle.
